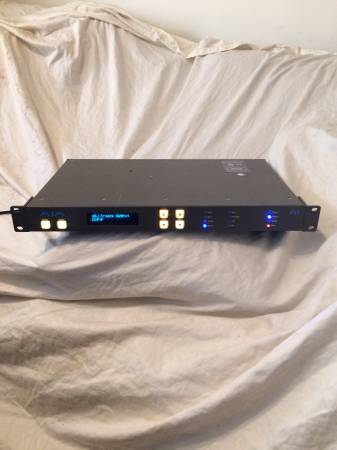

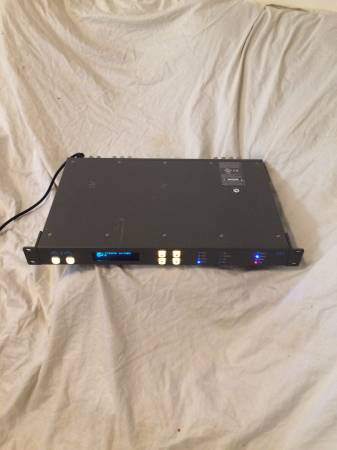

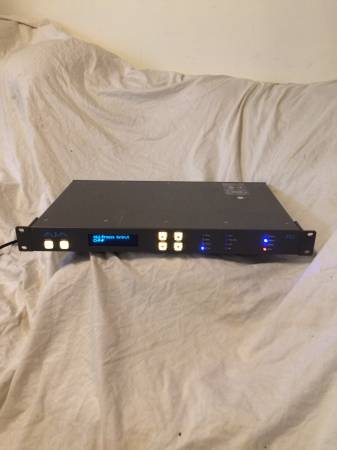

AJA FS1 Universal HD/SD Frame Synchronizer Converter - $750 (North Side)
Ohio near Damen
condition:
excellent
make / manufacturer:
AJA
model name / number:
FS1
size / dimensions:
11 x 19 x 2
QR Code Link to This Post

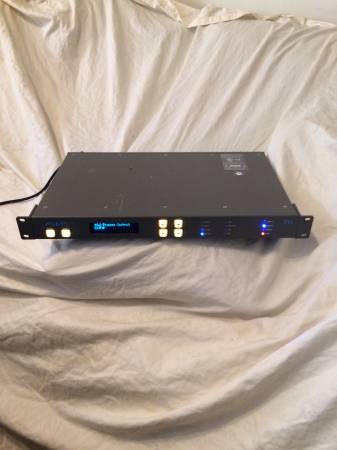

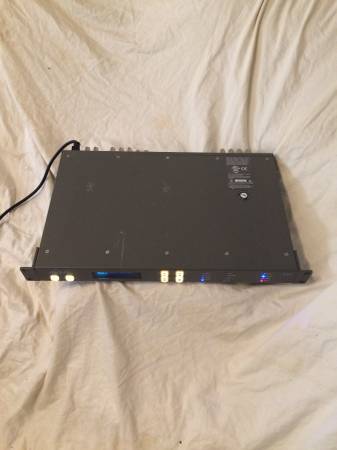

Powers on and all lights work.
The following is from the AJA website:
Features
HD/SD Frame Synchronizer and Format Converter
2x 3G-SDI Inputs
2x 3G-SDI Outputs
HD/SD component YPbPr,
SMPTE-274 (3x BNC) I/O
Y/C (S-Video) I/O
Composite SD Analog I/O
Up, down, cross-conversion

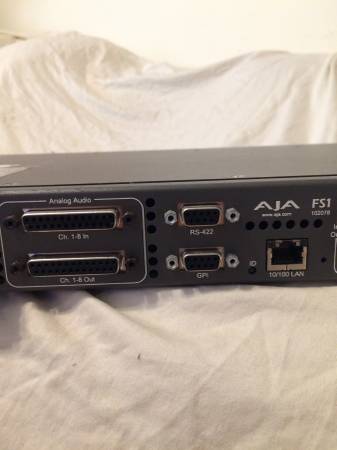

8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (8x XLR via 25-pin breakout cable) In
8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (8x XLR via 25-pin breakout cable) out

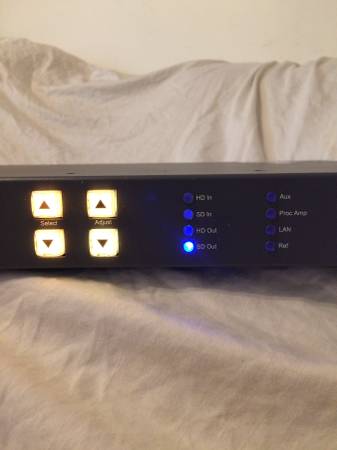

Front panel controls
Easy to use web UI, configure and control from standard web browsers
Flexible input, flexible output
Featuring a flexible input, output, and control architecture, the FS1 Universal HD/SD Audio/ Video Frame Synchronizer and Converter can simultaneously work with both HD and SD video all in full 10-bit broadcast quality video and 24-bit audio.
Supporting virtually any input or output, analog or digital, HD or SD, FS1 can up or down-convert between SD and HD, and provide simultaneous HD and SD outputs. Up, down, cross-conversion between HD formats are also supported, with simultaneous output of both formats.
AJA hardware
conversion technology
AJA's powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features includ:
SD/SD aspect ratio conversion
HD/HD cross-conversion (720p/1080i)
Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
HD cross-conversion with simultaneous down-converted SDI output
Digital and analog
I/O flexibility
FS1 is loaded with comprehensive I/O that lets it handle the widest range of analog and digital signals - and convert between them.
Perfect for use in broadcast and post production environments, FS1 features Dual HD/SD-SDI inputs and outputs, comprehensive multi-channel audio connections and I/O for analog video equipment, including HD and SD component.
For audio, FS1 supports 8-channel AES, balanced analog, or 16-channel embedded audio with full flexibility and audio processing controls. You can choose from any of the 4 groups of embedded audio for 8-channel output on the AES or analog audio.
Remote configuration
and control
FS units are network ready and support SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.
To integrate smoothly with the existing automation of a facility, FS1 can also receive external GPI commands to trigger a variety of functions, such as freezing an input source.
Closed caption conversion
FS1 supports closed captioning and the conversion of closed captioning between SD and HD formats for up, down or cross-conversion - including full conversion between CEA-608 captions and the CEA-708 standard. FS1 preserves closed captioning even when converting between formats, removing the need to re-insert closed captions after conversion.
Active Format Description
Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.
Architecture
FS1 is designed to meet the demands of broadcast engineering and live event production while providing incredible flexibility. Select any of the various inputs for conversion and route to all outputs simultaneously.

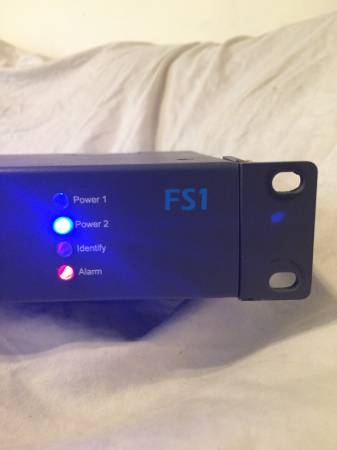

Dual, redundant power supplies ensure uninterrupted power even in the event of a power supply failure.
View Architecture

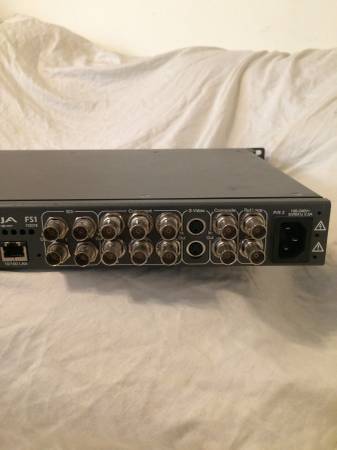

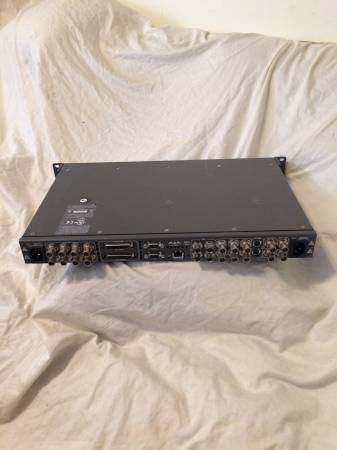

Extensive Connectivity
FS1 has a wide range of analog and digital inputs and outputs to allow integration into virtually any environment, featuring HD-SDI, analog component, composite and S-Video inputs and outputs and comprehensive embedded, digital and analog audio I/O with full routing capability.
From a smoke and pet free home.
Check out in person before purchasing.
Thanks for looking.
