CyberPower OR2200LCDRT2U Smart App LCD UPS - $300 (CHICAGO)
QR Code Link to This Post
Retail $600, selling in half price
Key Features
Output: 2200 VA / 1320W
Input: 90-140 VAC @ 50/60 Hz
8 x NEMA 5-20R Total Outlets
8 x Battery/Surge Protected Outlets
Recharge Time: up to 8 Hours
Simulated Sine Waveform
Line-Interactive UPS Topology
Automatic Voltage Regulation (AVR)
1840 Joules of Surge Suppression
Multifunction LCD Panel
CyberPower OR2200 Overview

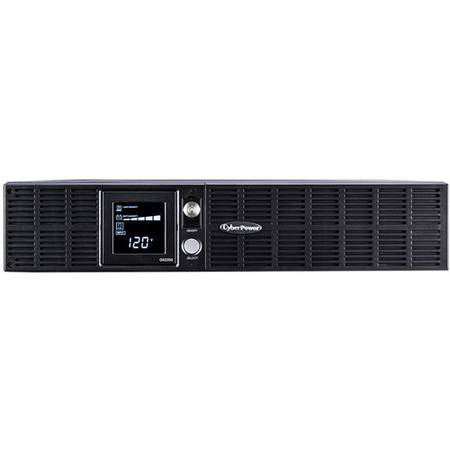

The OR2200LCDRT2U Smart App LCD UPS from CyberPower is a 2RU rack/tower convertible device with line-interactive topology that provides surge protection and battery backup via simulated sine waveform output for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It comes equipped with an output capacity of 2200 VA / 1320W, features an input voltage range of 90-140 VAC @ 50/60 Hz, Automatic Voltage Regulation (AVR) to help correct minor power fluctuations without switching to battery power, and also has integrated circuitry for EMI/RFI filters. This Smart App LCD UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the current/load level, runtime, battery level, AVR in use, battery in use, input/output voltage, output frequency, overload, silent mode, and more.
When running with a load of 50W, this UPS can power devices for up to 412 minutes. When running with a load of 700W, it can power devices for up to 14 minutes and when running at 1400W, up to 5 minutes. It can be recharged in around 8 hours and offers eight total NEMA 5-20R outlets, all of which are equipped with battery and surge protection and can absorb up to 1840 joules for keeping your devices safe against surges and spikes. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000.
General Features
Data Line Protection
Helps prevent power surges that travel through telephone and Ethernet lines from causing damage to electronics.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to help prevent damage.
Line-Interactive Topology
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery power.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically boosting low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Waveform Output
Uses pulse wave modulation to generate a stepped, approximated sine waveform to supply cost-effective battery backup power for equipment that does not require sine waveform output.
GreenPower UPS Bypass Design
Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up.
EMI/RFI Noise Filter
Helps maintain clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
Rotatable Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation (2 RU rackmount/tower convertible).
Durable Metal Housing
Helps protect internal components and resists damage from impact or abrasions within challenging industrial environments. It also extends the life of the product.
Audible Alarms
Identify model overloads, low battery, and when the model is running on battery power.
PowerPanel Business Edition Software
Provides tools for monitoring and managing the UPS and backup power, also offers remote management functionality.
ENERGY STAR
ENERGY STAR certified Uninterruptible Power Supply (UPS) system.
Connected Equipment Guarantee
CyberPower will repair or replace up to $300,000 of properly connected equipment if it is damaged by a power surge.
