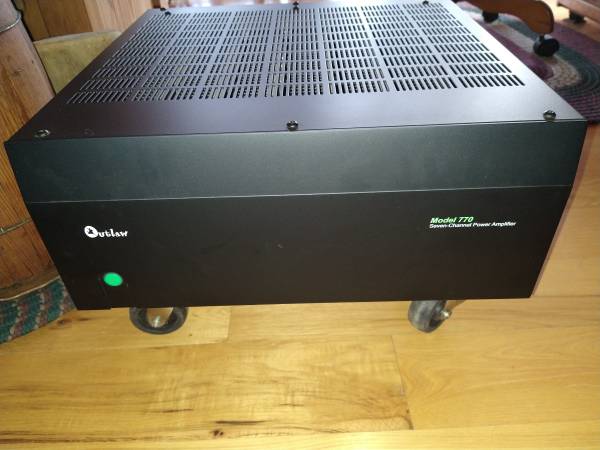

Outlaw 770 7.1 Channel Amplifier & 950 7.1 Channel Surround Processor - $1,500 (Harvard)
QR Code Link to This Post

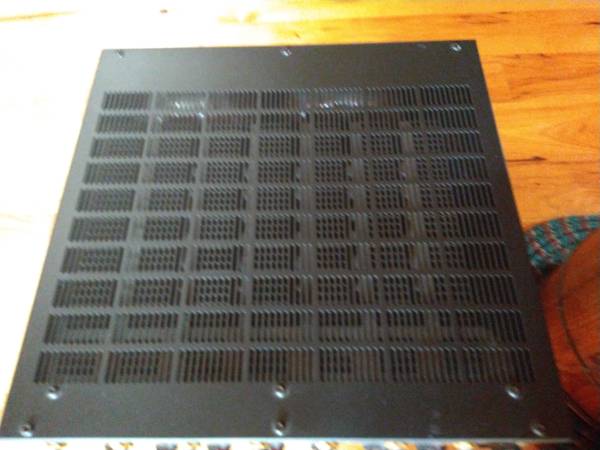

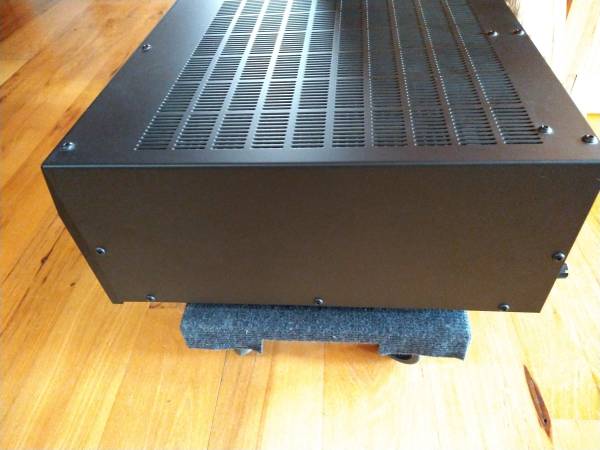

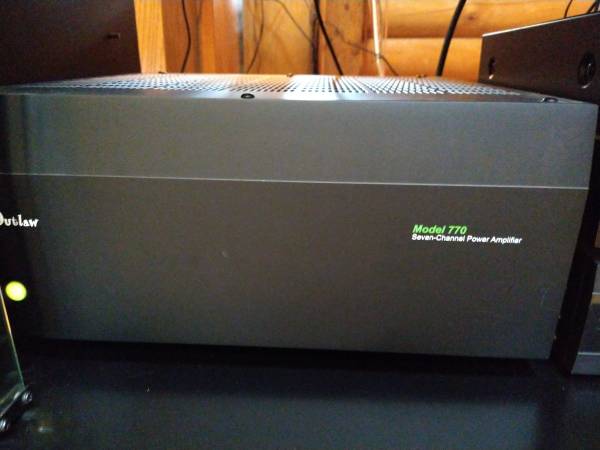

770 Specifications
Power output: 200 watts RMS x 7 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.05% total harmonic distortion). 300 watts RMS x 7 @ 4 ohms
Signal to Noise: 119dB "A" weighted
Power Bandwidth: 5 Hz - over 100 kHz (+0/-3 dB)
Crosstalk: Greater than -90 dB from 20 Hz to 20 KHz
Gain: Voltage gain of 28 dB.
Slew rate: 50 Volts/microsecond
Remote Trigger voltage: 3 - 32 volts DC
Power requirements: 115 V 50-60 Hz
Power consumption: 1,800 watts (maximum)
Dimensions (W x H x D): 17.2 x 7.75 with feet x 18 (inches)
Weight: 90 (lbs)

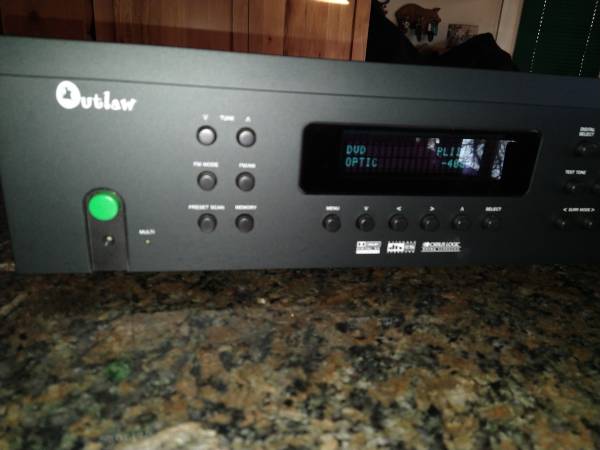

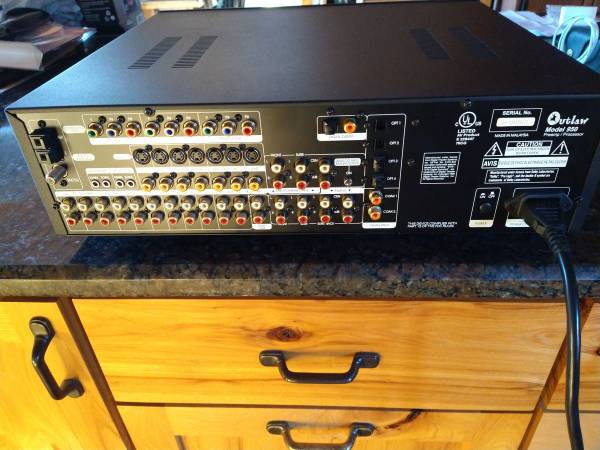

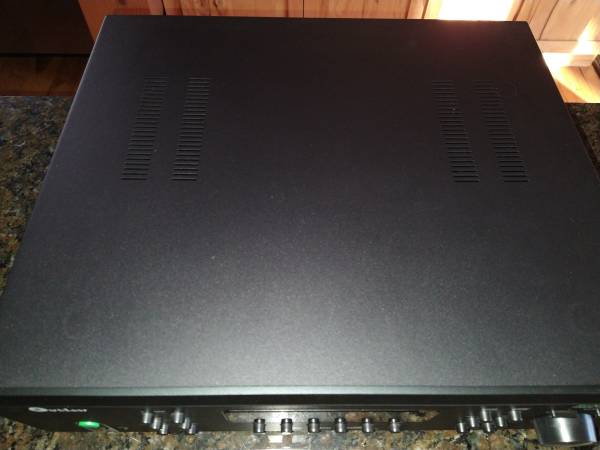

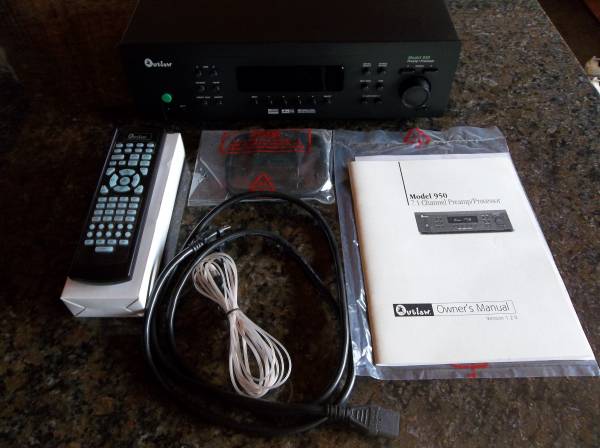

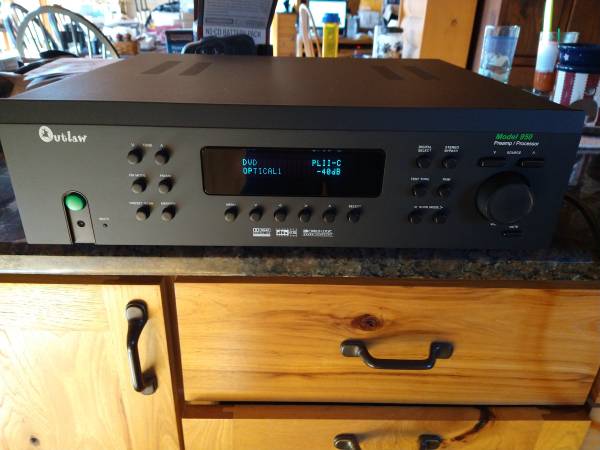

950 Audio Section - 2 Remotes
Analog
• Frequency response: 10 Hz - 90 kHz: +0, -3 dB (Bypass Mode)
• Signal to Noise Ratio: 102 dB (Bypass Mode)
• Distortion: 0.0038% (20 Hz ~ 20 kHz) (Bypass Mode)
• Input sensitivity / input impedance: 200 mV/ 47kohms
• Rated output: 1V(0dB gain in Bypass Mode)
Digital
• Signal to Noise Ratio: 102 dB
• Total Harmonic Distortion: <0.005% (1 kHz, at 0 dB)
• Dynamic Range: 100 dB
• D/A Output: Rated output 2 V (At 0 dB playback)
• Digital Input: S/P-DIF Format
• DSP Processor: Cirrus® CS 49326
• ADC: Cirrus CS 5360
• DAC: Cirrus CS 4396
Video Section
Composite
• Video Format: NTSC
• Input/Output Level: 1 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB
S-Video
• Signal Format: NTSC Y/C
• Luminance (Y) Input/Output Level: 1 volt P-P
• Chrominance © Input/Output Level: 0.3 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB
Component Video
• Signal Format: NTSC Y/Pr/Pb
• Analog Components
• Luminance (Y) Input/Output Level: 1 volt P-P
• Pr Input/Output Level: 0.7 volt P-P
• Pb Input/Output Level: 0.7 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: DC - 45 MHz -- +0, -3 dB
Tuner Section
FM
• FM Tuning Range: 87.5 MHz - 108 MHz
AM
• Usable Sensitivity: Stereo: 1.8µV
• 50 dB Quieting Sensitivity: MONO 2.5µV STEREO 23 µV
• Signal to Noise Ratio (IHF-A): MONO 79 dB STEREO: 74dB
• Total Harmonic Distortion: MONO 0.2% STEREO: 50 dB
• AM Tuning Range: 520 kHz - 1710 kHz
• Usable Sensitivity: 25µV
General
• Power supply: AC 120 V, 60 Hz
• Power consumption: 45W
• Dimensions (including feet and connectors): 17.12 (W) x 4.6 (H) x 14.76 (D) inches, 435 (W) x 117 (H) x 375 (D) mm
• Weight: 17.6 Lbs/8 kg
• Trigger Outputs (x2): 12 VDC, 100 mA maximum
If it is listed, it is available. CASH Only!
