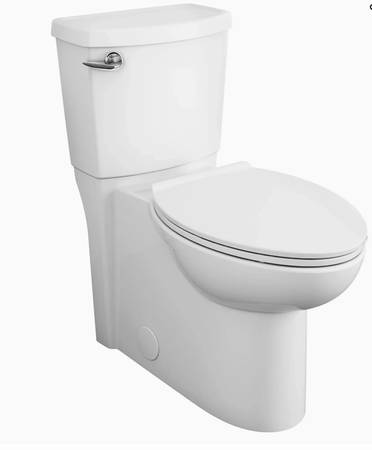

American Standard Cadet3 Skirted 2-Piece Chair-Height Toilet w/Seat - $325 (Arlington Heights)
QR Code Link to This Post
Combination bowl and tank, with seat
12" (305 mm) rough-in
High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
Meets EPA WaterSense® criteria
EverClean® Antimicrobial Surface
16-1/2" (419 mm) rim height for accessible application
Siphon action jetted bowl with smooth-sided, concealed trapway
2-1/8" (54 mm) fully glazed trapway
9" x 8" (229 x 203 mm) water surface area
PowerWash® rim scrubs bowl with each flush
3" (76 mm) flush valve
Chrome plated trip lever
Includes top-mount slow-close seat and cover with easy lift off feature
Two color-matched bolt hole covers
Overall Height: 30-1/4" (bottom of the base to the highest point on the toilet)
Overall Length: 30-1/4" (back of the tank to the front of the rim)
Overall Width: 15-3/4" (furthest point on the left to the furthest on the right)
Bowl Height: 16-1/2" (bottom of the base to the rim)
Rough In: 12" (wall behind toilet to center of waste outlet hole in floor)
Flush Valve Size: 3" (diameter of the inlet for water entering bowl from tank)
Trapway Size: 2-1/8" (diameter of the outlet for water/waste exiting the bowl)
Flow Rate: 1.28 GPF (gallons-per-flush)
Water Area: 9" X 8" (inner rim dimensions length X width)
Water Depth (From Rim): 11"
Tank Trip Lever Placement: Left
