2026 XL 110 HDGS - Guardian - $114,900 (East Dundee)
202 Christina Dr
condition:
new
make / manufacturer:
2026 XL Specialized
model name / number:
110 HDGS - Guardian
size / dimensions:
53' x 102"
QR Code Link to This Post
53’ L x 102” W
Low-Profile Scraper Neck
Capacity - 110,000 lbs, 110,000 in 10”
Trailer weight - 22,470 lbs.
Main Deck Length - 26’
Loaded Deck Height - 18” w/ 6” Ground Clearance
1 - Toolbox in Front of Main Deck
4 - Flat D-Rings On Front & On Back
7 - Bent D-Rings Per Side
Swing out Outriggers - 24” O/C (Center Swings Together)
Pullout HD Outriggers
Chain Drops On 24” Centers Per Side Outside Main Beam
Bucket Well at Rear of Main Deck w/ Plate On Bottom
31” Front Flip Ramps

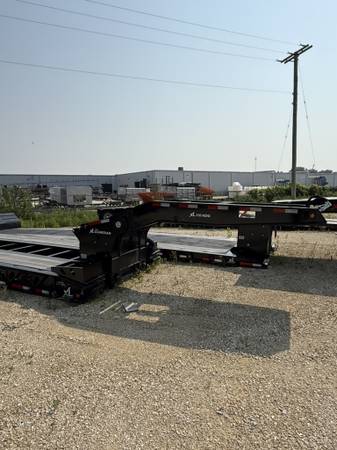

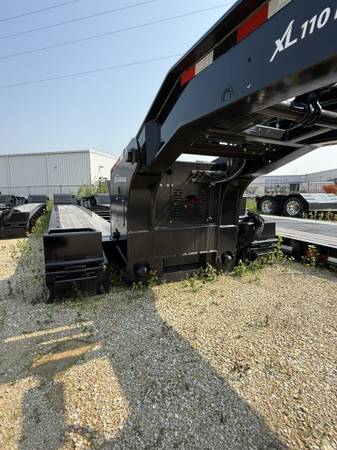

Gooseneck Length - 13’
King Pin Setting - 16” & 42”
5th Wheel Height - 51” w/ 5 Variable Ride height Positions
Gooseneck Swing Clearance - 110” & 84”
Grote Trilliant Work Light
Rear Deck Length - 14’
Rear Deck Loaded Height - 41”
1 - Pair Flat D-Rings On Main Beams At Front
1 - Pair Flat D-Rings On Main Beams At Rear
2 - Pair Flat D-Rings In Boom Trough
2 - Chain Drops Per Full-Width Bolster
2 - Stake Pockets at Rear
Prepped For Single Axle Booster
Manual Ride Height Control
Air Lift On Rear Axle
275/70R22.5 Tires
Outer Aluminum Wheels
Hendrickson Air Ride Suspension
Colas+ Raise & Lower Valves
Battery Backup w/ 4-Way Plug
12V Sealed Grote Harness

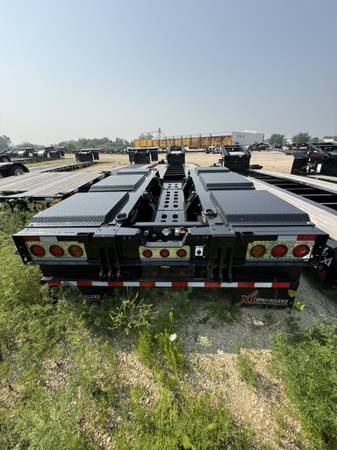

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light
Prepped for a Flip Axle
2 - Pair EZ Mount Flag Holders
5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty
Price: $114,900
Pick up in East Dundee IL or Manchester IA
Coming in Late September
Call Ross
