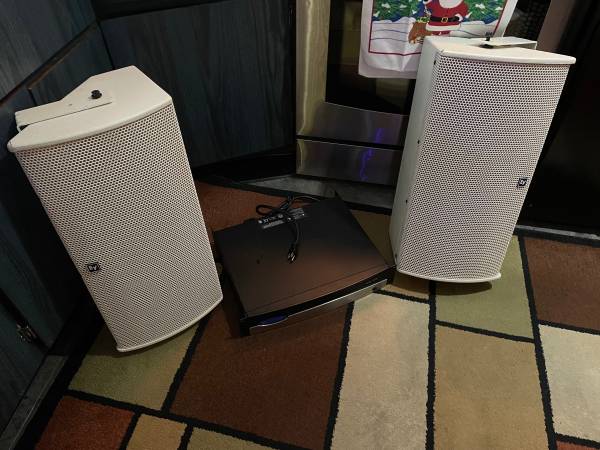

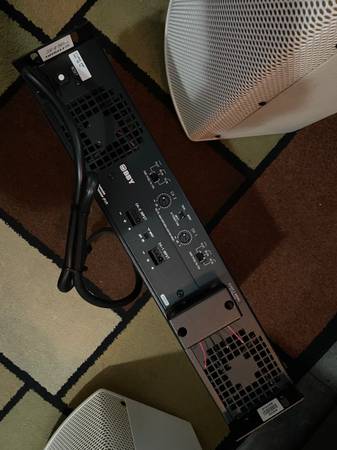

EV FRi-2082 full range loudspeakers pair Crown amp CTs600 Amplifier - $1,400 (Bridgeview IL)
condition:
good
make / manufacturer:
EV Crown
QR Code Link to This Post

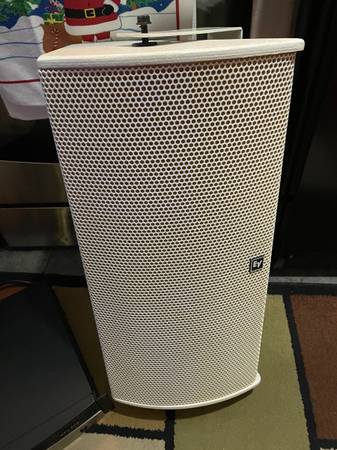

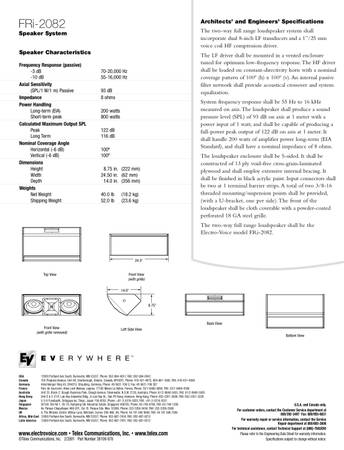

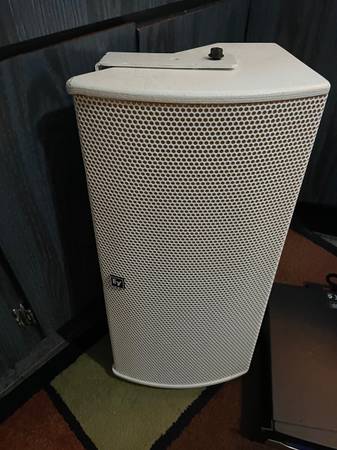

Electro-Voice FRi-2082 - Dual 8" Two-Way Full-Range Loudspeaker (White) Pair
Highlights
For Permanent Installations
Under Balcony and On-Wall Locations
Dual 8" Speakers
1" Titanium Compression Driver
Tuned Enclosure
200W Power Handling
Features
The FRi-2082 from Electro-Voice is a two-way ceiling or wall mount speaker for fixed installations, with a 200-watt power handling capacity that is designed for use in larger club, sports, and recreational venues.
The speaker has a compact, low profile design, and features dual 8" woofers and a 1" horn-loaded titanium compression driver, housed in a reinforced 13-ply plywood cabinet. The speaker comes with a mounting bracket for horizontal or vertical orientation.
Full-range two-way installation P.A. speaker for large sports, recreational and club venues
200-watt power handling capacity
Dual 8" woofers
1" titanium tweeter loaded into constant-directivity horn
Symmetrical cross section facilitates both ceiling and wall mounting, with horizontal or vertical placement options
Versatile 45º aiming angle for under-balcony, on-wall, and stage monitoring applications
LF-optimized vented enclosure
Low-profile slanted design
Secure reinforced cabinet construction
Two 3/8-16 threaded mounting/suspension points
PA Speaker
Configuration Passive 2-Way
Total Power Capacity 200 W RMS
800 W Peak
System Impedance 8 Ohms (Passive)
Drivers
HF Driver 1 x 1" / 25 mm Titanium Compression Driver
LF Driver 2 x 8" / 20.3 cm Woofer
Performance
Frequency Range 45 Hz to 20 kHz -10 dB
Frequency Response 70 Hz to 20 kHz -3 dB
Maximum SPL 116 dB (Continuous)
122 dB (Peak)
Coverage Angle 100° H x 100° V
Speaker Sensitivity 93 dB SPL
Connectivity

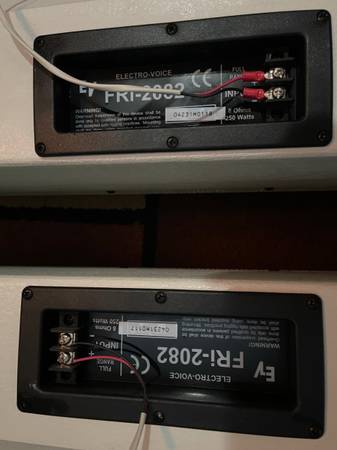

Audio I/O 1 x Barrier Strip
Signal Processing
Crossover 2.8 kHz
Physical
Construction Material Plywood
Dimensions 24.4 x 14 x 8.8" / 222 x 620 x 356 mm
Weight 40.1 lb / 18.2 kg
Packaging Info
Package Weight 44.4
Box Dimensions (HxWxD)

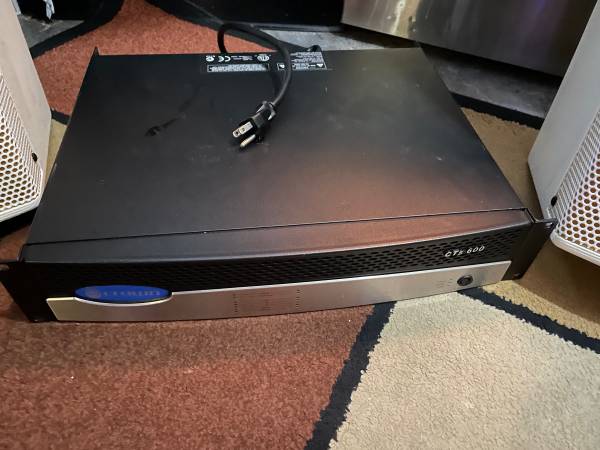

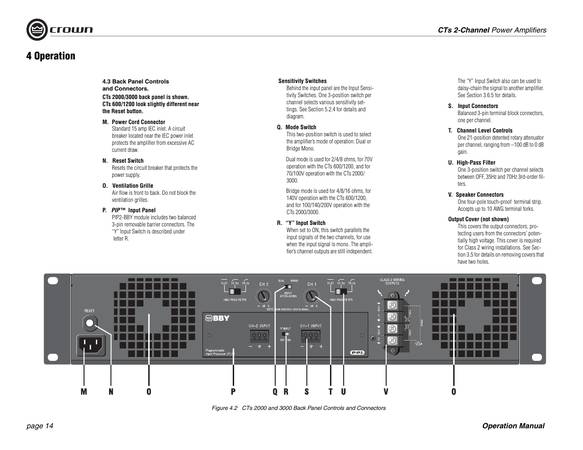

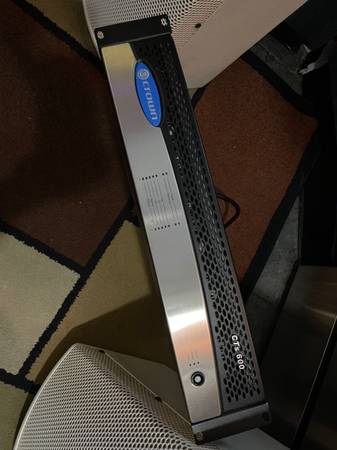

Crown CTs600 amp
Crown’s CTs Series amplifiers provide exceptional performance, flexibility and value for installed sound applications. CTs Series amplifiers feature independent selection of high and low impedance operation for a specific channel, plus power levels and features that were carefully chosen to match the requirements of fixed install design. Easy integration with HiQnet™ and CobraNet™ allows CTs amplifiers to deliver a comprehensive lineup of monitoring and control features along with digital audio transport for an award-winning digital audio solution.
Features
High power density. All two channel models and four channel model in a 2RU chassis, eight channel model in a 3RU chassis
Crown Switching Power Supply for lighter weight
Selectable "Constant-Voltage" or low-impedance (4/8 ohm) operation per channel on 2-channel models, and per channel-pair on 4-and 8-channel models
100V direct outputs on CTs 2000, CTs 3000, CTs 4200, and CTs 8200
Legendary Crown class-I (BCA) and AB+B output topologies offer the best in amplifier reliability
4- and 8-channel models offer perfect independent power solutions for multi-zoned systems· "FIT" (Fault Isolation Topology) circuitry on 4- and 8-channel models isolates fault conditions without affecting neighboring channels
Comprehensive array of indicators provide accurate diagnostics
Two-channel models are fully PIP2-compatible. Multi-channel models accept MC accessory modules.
Specifications
Channels 2
Sensitivity 1.4 V
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) 105 dB
THD (full rated power, 20 Hz - 20 kHz) < 0.1%
Damping Factor (10 Hz to 100 Hz) <3000
Frequency Response (at 1W, 4/8 ohms) +/- 0.25 dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80 dB
Common Mode Rejection (20 Hz to 1 kHz) > 50 dB
Maximum Input Level before Compression +20dBu
Load Impedance 70V, 100V (2-16 Ohms)
Voltage Gain (at maximum level settings) (8/4 ohm operation) 35:1 (31 dB)
Power Draw at Idle (120VAC mains: standby mode) 24W
Dimensions 3.5" x 19" x 14.25"
Weight 22.8lbs
Shipping Weight 27.7 lbs
Selling as bundle will not separate that’s how it was connected.
$1400 cash takes it
Please don’t bother with trades offers
