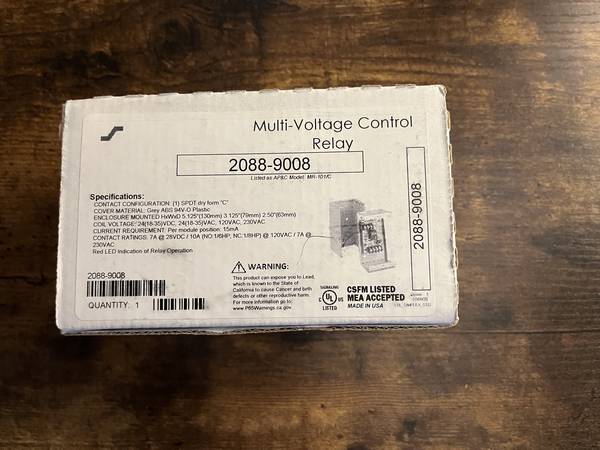

Simplex Multi-Voltage Control Relay 2088-9008 - $15 (Palos Hills)

Simplex Multi-Voltage Control Relay 2088-9008 1 thumbnail

S84th Ave near Cour La Salle

condition: new

make / manufacturer: Simplex

model name / number: AP&C Model MR-101/C

size / dimensions: 6x4x3

QR Code Link to This Post

Multi-Voltage Control Relay 2088-9008
AP&C Model MR-101/C

Specifications:
- Contact Configuration: (1) SPDT dry from "C"
- Cover Material: Grey ABS 94V-O Plastic
- Enclosure Mounted HxWxD 5.125"(130 mm) 3.125"(79 mm) 2.5"(63 mm)
- Coil Voltage 24(18-35) VAC, 120 VAC, 230 VAC
- Current Requirement: Per module position: 15 mA
- Contact Ratings: 7 A @ 28 VDC / 10 A (NO: 1/6 HP, NC: 1/8 HP) @ 120 VAC / 7 A @ 230 VAC
- Red LED Indication of Relay Operation
