Exhaust Fan, 54 In, Less Drive Package - $200 (Round Lake)
QR Code Link to This Post
$200 if picked up in Darien or Glenview

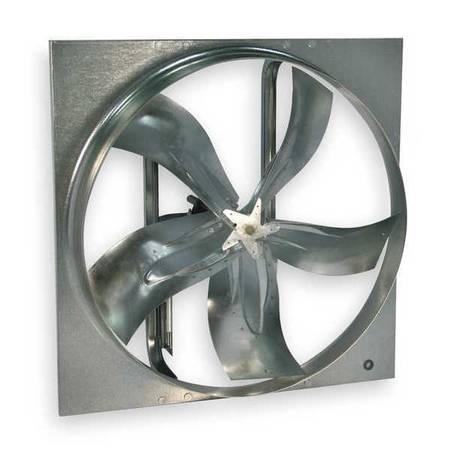

Exhaust Fan, 54 In, Less Drive Package
Dayton #1AHA6 Specifications
Exhaust/Supply Fan Item: Exhaust Fan
Type: Medium Duty Belt Drive Less Drive Package
Blade Dia.: 54 in
CFM Range: 30,129 to 44,535
Exhaust/Supply Fan Motor HP: 1-1/2 to 5
Drive Package With Motor Included: No
Dimension E (In.): 16 1/2 in
Venturi Clearance Dia. (In.): 55 in
Bearing Type: Regreasable Pillow Block
Dimension B (In.): 23 in
Galvanized Wall Shutter No.: 3C115
Venturi Depth (In.): 6 1/2 in
Height (In.): 60 in
Dimension F (In.): 55 in
Dimension D (In.): 2 in
Fiberglass Wall Shutter No.: 5C221
Flange Width (In.): -
Intake Guard No.: 1WBU8
Wall Collar Stock No.: 1WBV7
Mounting Position: Horizontal or Vertical
Width (In.): 60 in
Weatherhood No.: 1WBW5
Aluminum Wall Shutter No.: 3C313
Dimension C (In.): 6 1/2 in
Requires: Wall Collar and Shutter For New Installation
Wall Housing Item No.: 3FKG4
Frame Material: Galvanized Steel
Max. Depth (In.): 23 in
Bearing Size (In.): 1 1/4 in
Dimension A (In.): 60 in
Max. Ambient Temp. (F): 104 Degrees F
Flange Depth (In.): 2 in
Number of Blades: 5
Drive Package Included: No
Item: Exhaust Fan
Propeller Material: Steel
RPM Range: 343 to 507
Agency Compliance: -
Shaft Dia. (In.): 1 1/4 in
text 630.247.sixsix60
To view all my listings search patchesz
