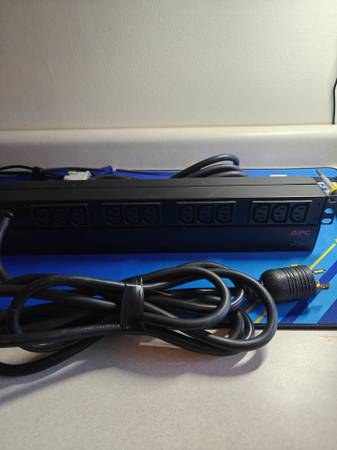

APC Rack Mount PDU (AP9566), Basic 208V/20A, (12) Outlets, 1U - $50
condition:
excellent
QR Code Link to This Post
2 available.
- 208V Input, Basic 20A rackmount Power Distribution Unit
- Input (Plug type): NEMA L6-20P (3.3 kW)
- Output Receptacles: Twelve (12) C13 Outlets
- 1U Horizontal Mounting PDU
- Cord Length: 11.8 feet
Cord length 12 ft (3.7 m)
Input Voltage 200 V, 208 V, 230 V
Height 1.73 in (4.4 cm)
Width 17.60 in (44.7 cm)
Output Voltage 208 V
Depth 2.24 in (5.7 cm)
Net Weight 5.5 lb(US) (2.5 kg)
Mounting Location Front, Rear
Mounting preference No preference
Input Plug Type NEMA L6-20P
Mounting Mode Rack-mounted
Rack units 1U
Mounting position Horizontal
Line Rated Current 16 A
Input current limits 20 A
Load Capacity 3328 VA
Input Frequency 50/60 Hz
Outlet type and quantity 12 IEC 60320 C13
More details: https://www.apc.com/us/en/product/AP9566/rack-pdu-basic-1u-16a-208v-12c13/
