100mm 3J 4J Chuck Backplate - $30 (La Grange)

google map

condition: new

make / manufacturer: ArcEuroTrade

model name / number: 040-060-10100

size / dimensions: 100mm

QR Code Link to This Post

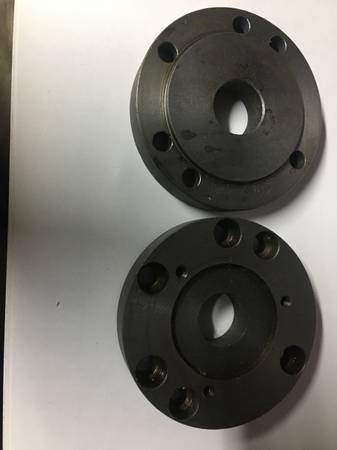

100mm Chuck backplate

I have 2. $30 each.

Used as an adaptor on the SIEG C2, C3, SC2 and SC3 and similar Mini Lathes when fitting a 100mm chuck.

Diameter: 100mm.
Register on Back: 55mm - Fits C2, C3, SC2 and SC3 spindle.
Register on Front: 72mm - Suitable for most 100mm Chinese chucks.
Fixing Holes: 84mm PCD, Suitable for most 100mm Chinese 3 jaw and 4 jaw chucks.
Centre Bore: 26.5mm.
Material: Steel.

post id: 7877985466

posted: 2025-08-31 11:07

updated: 2025-11-01 08:59
