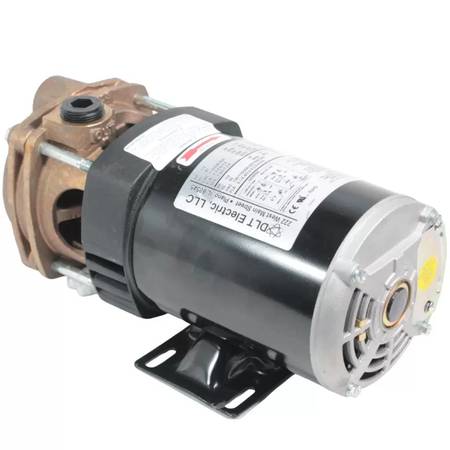

MTH T41 Series Regenerative Turbine Pump - $599 (GLENVIEW)
QR Code Link to This Post
Turbine pumps produce higher pressures than typical straight centrifugal pumps and are optimal for boiler feed systems that require high pressures and heads. Turbine pumps are sized by horsepower (HP) and pair with motors of the same HP to meet application pressure and flow rate requirements. As pounds per square inch (PSI) increase, so does feet of head.
MTH Pump DLC-1242-03-ODP C3 Style 56C Face Motor. 1/3 HP, 1 Ph (Single Phase), 60/50 Hz, 115/208-230; 110/220 Volt, 3450 / 2880 RPM, 2 Pole, ODP - Open Drip Proof Enclosure, 56C Frame.
HP 1/3
Hz 60/50
Motor Enclosure Type ODP - Open Drip Proof
Motor Frame Size 56C
Part Type Motor
Phase 1 Ph (Single Phase)
Pole: 2
Quick Specs C3 Style 56C Face
Service Factor 1.6 / 1
Speed (RPM) 3450 / 2880
Voltage 115/208-230; 110/220
IP21 enclosure and range from 1/3HP
to 2HP. All D3 motors feature a 304
stainless steel shaft and CE mark approval. T41 pumps can accept most
commonly available motors through
the use of close or flexible coupling.
For wider fluid compatibility, T41 units 3HP and under feature a protective motor shaft sleeve, while motors 5HP and over utilize a corrosion-resistant 316 stainless steel shaft. Motor for the T41 Series comes in ODP enclosures and allow operation at two pole speeds (3450/2880 or) with 1/3HP
Steep Operating Characteristics
Near-constant capacity is maintained over wide variations in pressure.
High shut-off pressure overcomes temporary line resistance. Self-Adjusting Impeller A hydrodynamic film on each side of the impeller positions it for long life. The impeller exerts no thrust load on bearings. Pump operates equally well in a vertical or horizontal position
