Multi-Conductor Cable E171202-01 18 AWG, 7C 75C, AWMW 2464, 300V cable - $190 (Glenview)
QR Code Link to This Post
General Features:
1000 ft
Cobra wire E171202-01
18 AWG
7C 75C
7 conductors
AWMW 2464
AWM Style 2464 (UL or CSA: 80°C, 300V)
300V
80C
7x32
Part# 18-7MC
ROHS compliant
Communication cable is Cobra certified.
Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Access control
Video Surveillance/CCTV,
Intercom
Security,
Home Theater and Burglar Alarms

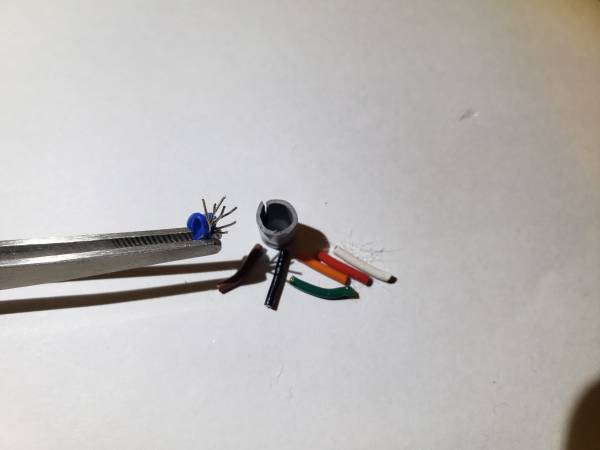

No. of Cond. Color
1 Black
2 White
3 Red
4 Green
5 Brown
6 Blue
7 Orange
Approximate resistance of copper wire:
AWG: 18
mΩ/ft: 6.4
mΩ/m: 20
Cobra Wire & Cable control cable is designed for use in computer interconnections, data transmission, control circuits, and industrial equipment control. These cables are also approved for use in EIA RS-232 applications.
Superior shielding effectiveness
25% shield overlap provides excellent shielding efficiency
Good flexibility
Similar Mouser parts "602-80036-1000-09", "602-79014-1000-09", "602-1898/7C-1000" these are just close matches, please review all information provided.
UL authorized Cobra Wire to manufacture style 2464
https://iq.ul.com/awm/File.aspx?FN=E163982
https://iq.ul.com/awm/stylepage.aspx?style=2464
Manufacturer: EIS INC, DBA Cobra Wire & Cable
Item Weight: 58.2 lb (weighted, disregard the sticker)
I am setting the price to sell it. If you see this ad, the Multi-Conductor Cable E171202-01 18 AWG, 7C 75C, AWMW 2464, 300V Industrial Communication cable is available! Make me an offer. Call with questions.
INCLUDED IN PURCHASE
Multi-Conductor Cable E171202-01 18 AWG, 7C 75C, AWMW 2464, 300V Industrial Communication cable
Brand: Cobra Wire and Cable
