ALTEC 847A Speaker System - THE SEVILLE - In Excellent condition! - $1,250 (Lombard)
QR Code Link to This Post

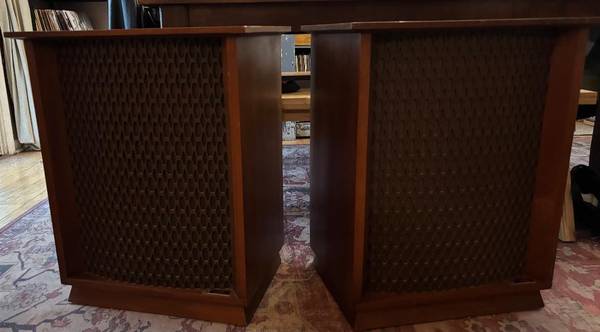

Here we have a beautiful console speaker set - Recently pulled from an Exec office at a large office closing.
These were barely used.
Comparable sets sell for $2K+!!
Trades / Offers will be considered.
Pickup ONLY w/ limited local delivery available (for additional cost - TBD). Located in Lombard.
A speaker system that is compact without losing the playback sound and design of a large system.
There are 2 types of Woofer of 847A, the former type of 16 Ω specification and the latter type of 8 Ω specification. The model was changed in 1970.
In Japan, there were 2 variations using the Altec original cabinet and the designated domestic cabinet. Also, as for the domestic cabinet, it seems to be sold separately.
In the previous fiscal year, we installed a 30 cm cone woofer 414A in the lower range, a horn unit 3000H with a zinc die-cast phone in the higher range, and an N-3000E network.
In the latter stage, 30 cm cone type woofer 414-8B is mounted in the low range.
Other configurations are the same as the previous year, with a horn type unit 3000H and network N-3000E.
The cabinet uses a bass reflex system.
* Released in 1967
847A : ¥ 204,200 (1 unit, around 1970)
¥ 224400 (1 unit, after 1970 revision)
847A (domestic box) : ¥ 120,800 (1 unit, around 1970)
¥ 147000 (1 unit, after 1970 revision)
Domestic box only : ¥ 42,300 (1 unit, around 1970)
¥ 43500 (1 unit, after 1970 revision)
Method 2-Way, 2-Speaker, Bass Reflex System, Floor Type
Format First semester Late stage
Units Used Low band 30 cm cone type (414A) 30 cm cone type (414 to 8 b)
High pass Horn Type (3000H)
Network N-3000E
Impedance 16 Ω 8 Ω
Frequency characteristic - 40 Hz to 20 kHz
Input - 35W (Allowable Input)
Crossover frequency 3kHz(12dBoct)
